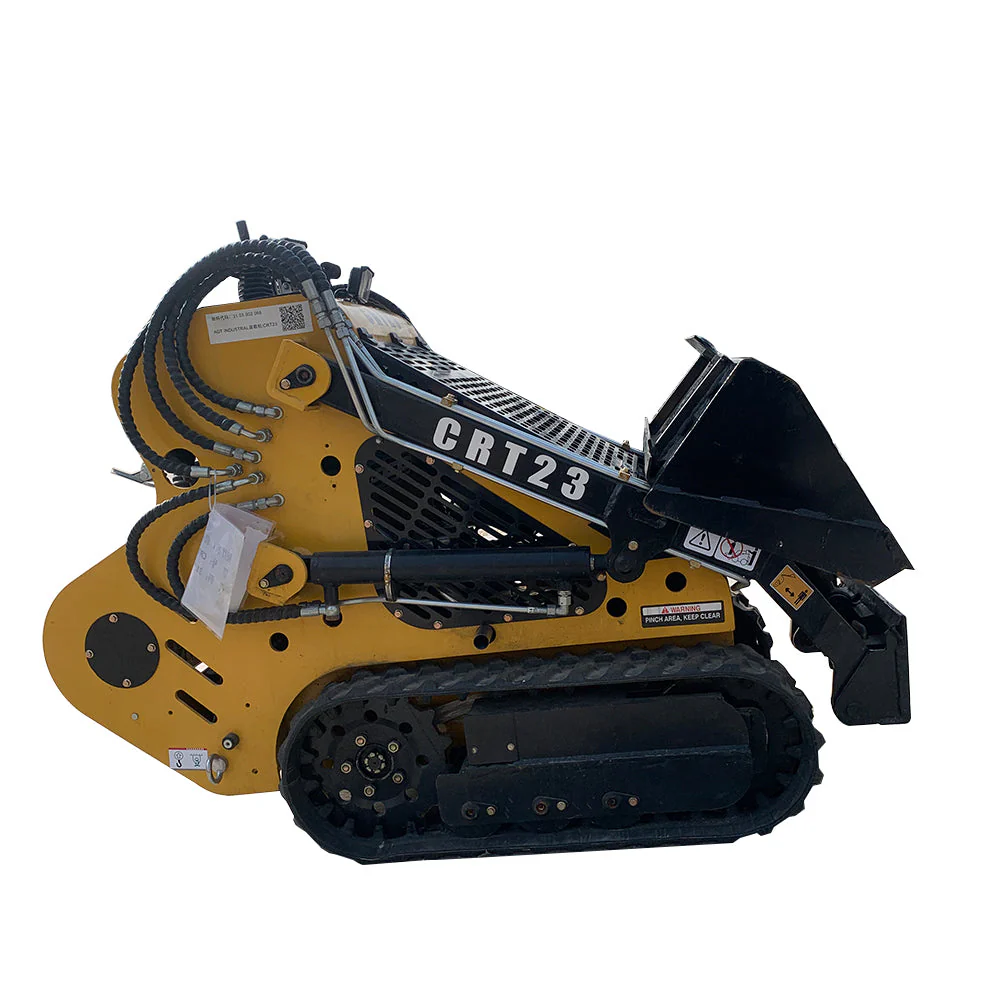

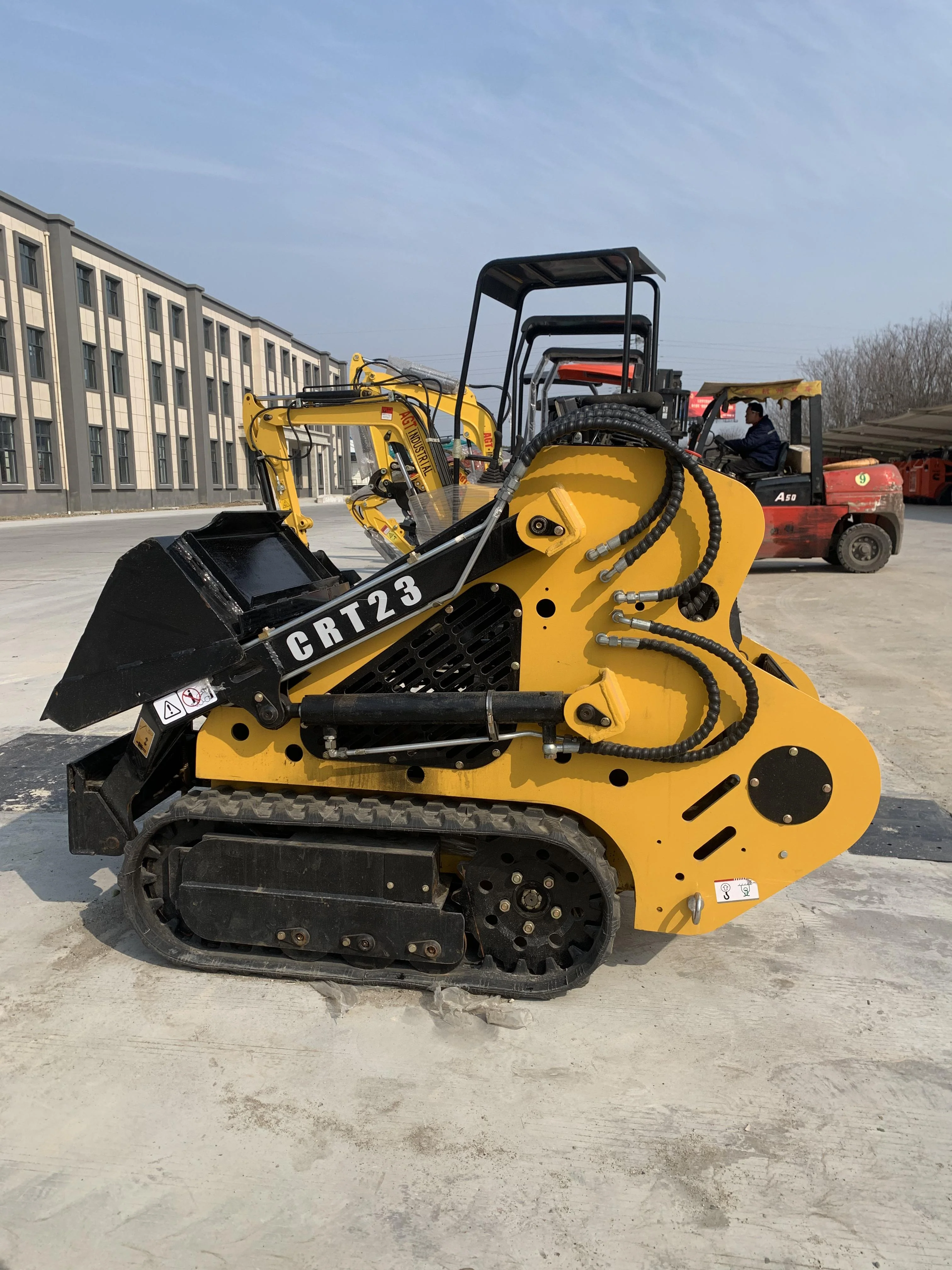

The RATO 23HP Mini Stand-On Skid Loader offers 950KG operating weight and a durable crawler design, making the CFG-CRT23 a compact yet powerful solution for heavy-duty tasks.

Technical Data:

Operation Weight: 1 Ton
Engine: Rato
Horse Power: 23
Max Angle: 30 Degree

Specific Data:

Engine	Rato
Overall weight	982㎏
Maximum Angle of climb	30°
Load Capacity	200㎏
Main valve	SHMMECH
Track dimension	1807237cm
Type of track tensioning	tension cylinder
Max. unloading height	2650mm
Max. unloading height	1860mm
Max. digging radius	2570mm
Max. Digging depth	1750mm
Max. vertical digging depth	1500mm
Min. swing radius	1290mm
Tail turning radius	760mm
Max. lifting height of dozer blade	325
Max. Digging depth of dozer blade	175

Basic Performance Parameters	Working Weight(kg)	950
	Bucket capacity(m³)	0.1
	Travel speed low/high speed(Km/h)	4
	Climbing ability(%)	30
	Maximum lifting force (Kg)	200
	C Maximum working height(mm)	2323
	B Maximum pin height (mm)	2007
	A Maximum unloading height(mm)	1612
	G Loading distance at maximum unloading height (mm)	611
	H Wheelbase(mm)	965
	F Ground clearance(mm)	203
	L Bucket discharge angle	23°
Body	E Bucket width(mm)	1120
	J/K Overall Length(mm)	2181/2435
	N Overall Width(mm)	1120
	O Body width(mm)	826
	D Overall Height(mm)	1383
	M Slewing radius(mm)	1500
Engine	Engine Brand	Rato
	Engine Model	740
	Max. Horsepower(pc)	27
	Maximum power(Kw)	16.8
	Max. speed(rpm)	3600
	Displacement (cc)	739
	Cylinders	2
	Cooling method	fan cooling
	Engine oil change quantity(L)	1.6
	Fuel Type	Gasoline
	Fuel Grade	92#
	Theoretical fuel consumption(L/h)	×
Hydraulic system	Main pump type/model	gear pumps
	Main pump brand	(Tianjin Xingzou)
	Rated set pressure(Mpa)	22
	Maximum flow rate of main pump(L/min)	75.6
	Multi-way valve	2+2+2
	Brand of Multi-way valve	(Li Xin)
	Rated Set Pressure(Mpa)	16
	Hydraulic Linear Motor type	Cycloid hydraulic motor
	Linear Motor Brand	(Dan Fusi)
	Motor Displacement	350
Tracks	△-Rubber (bandwidthpitchnumber of sections)	1807241
Tracks	Wheels	△
Configuration	Cab	×
	Roof	×
	Handrail	√
	Tensioning Forms	Hydraulic Tensioning
	Air Conditioning	×
Fuel tank	Fuel tank(L)	31
Fuel tank	Hydraulic oil tan(L)	33

Mini Skid Steer

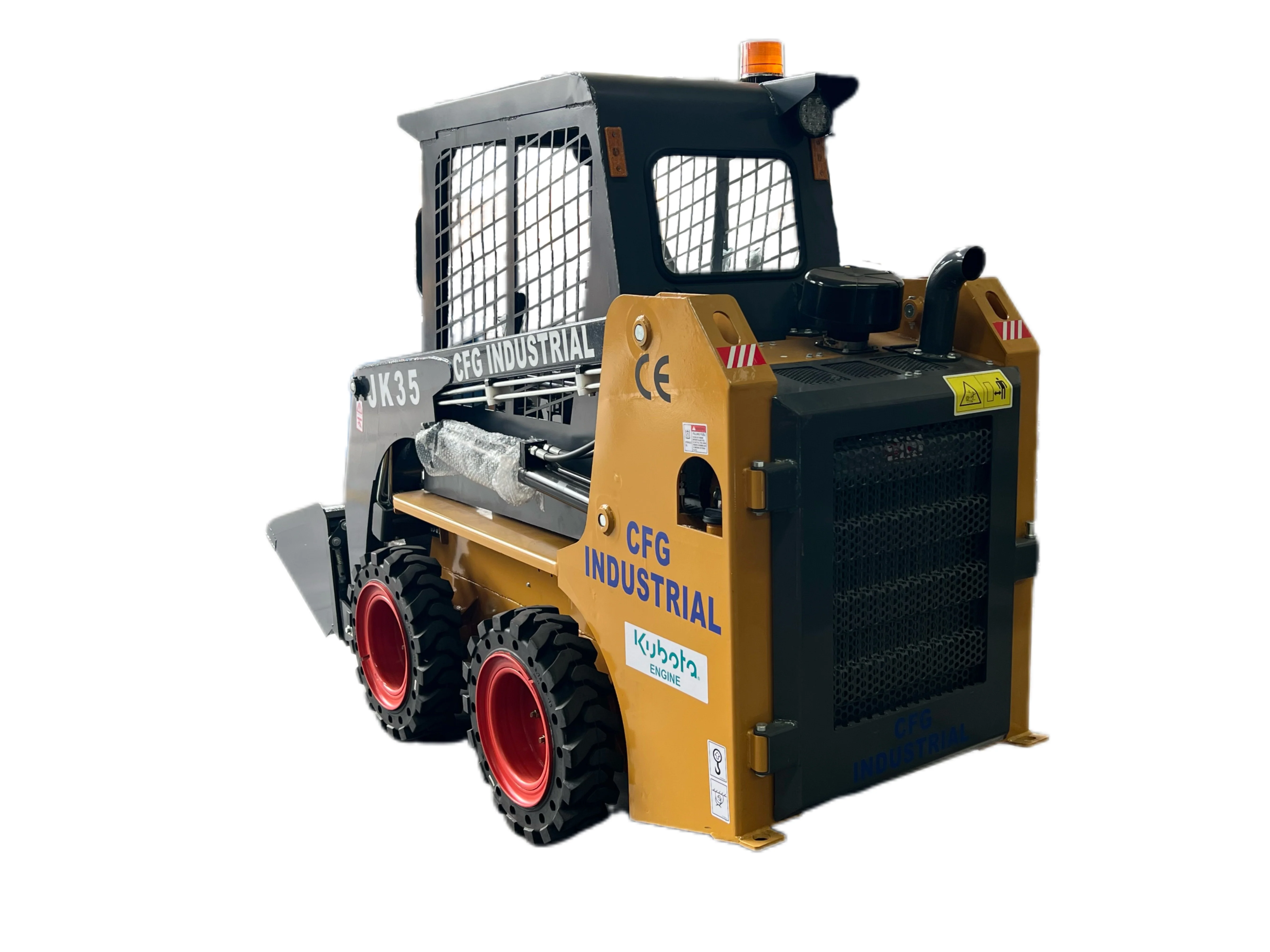

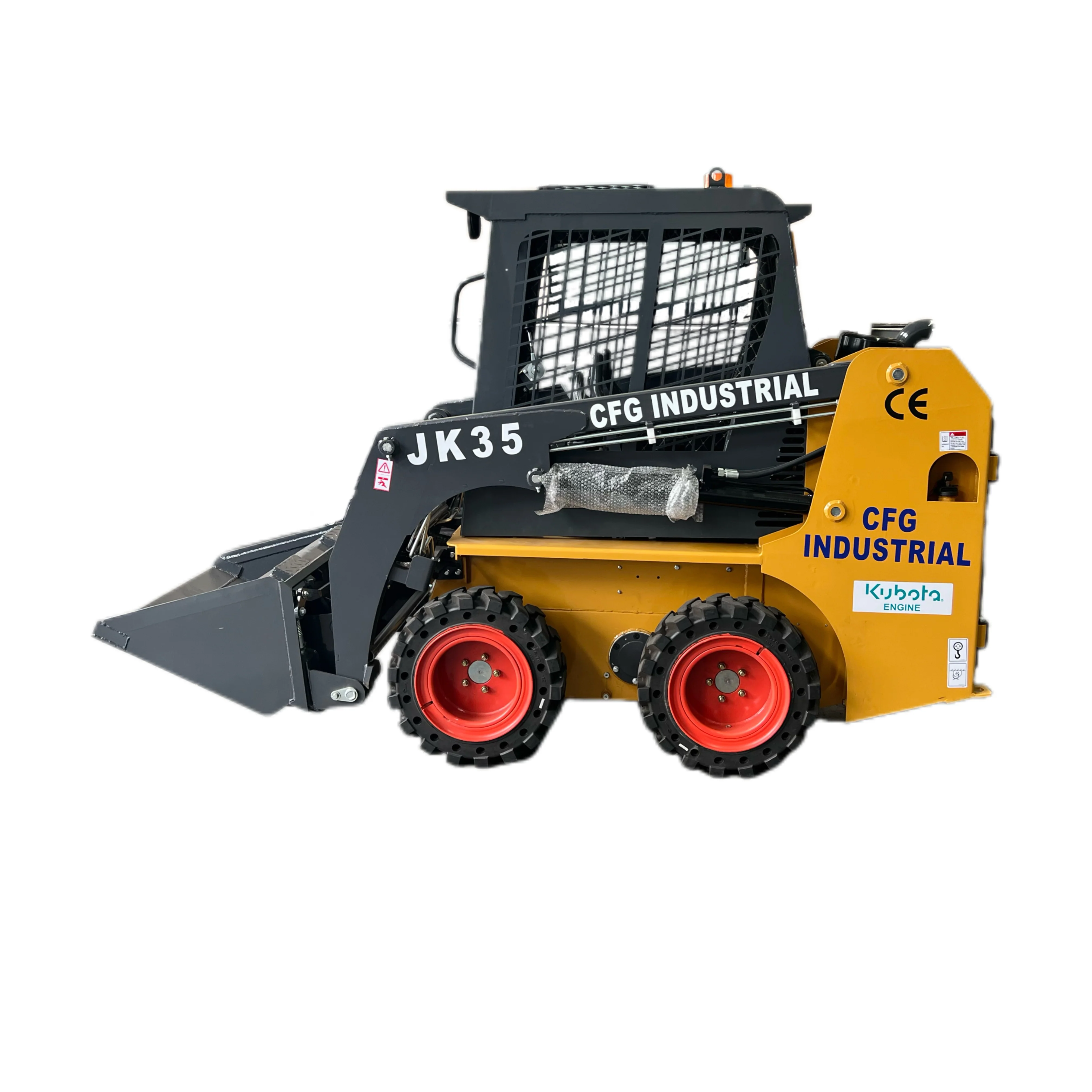

1.4 Ton, Open Operator Wheel Skid Steer Loader | JK35

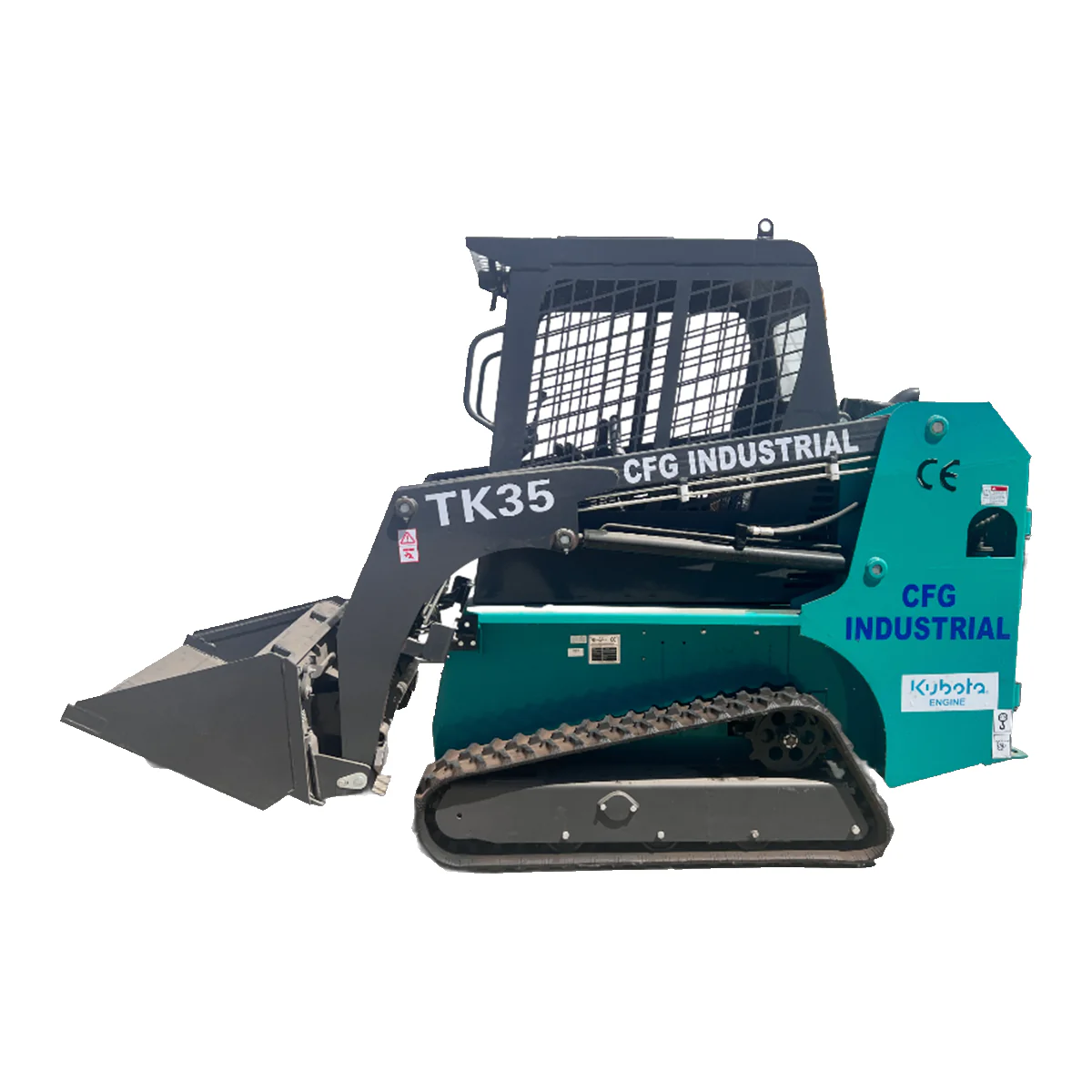

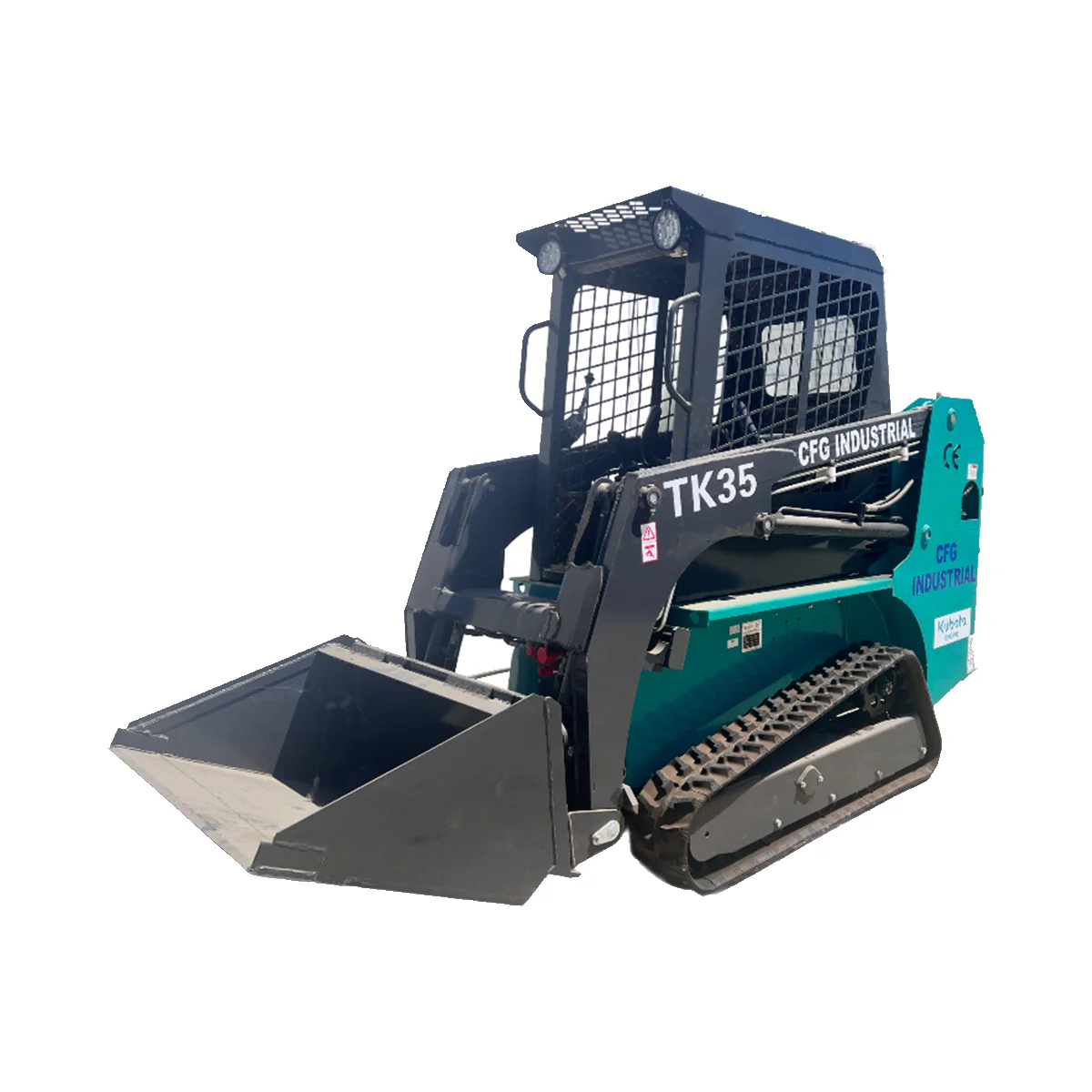

1.4 Ton, Open Cabin Skid Steer W/ Kubota Diesel Engine | TK35

1 Ton, Mini Stand-on Skid Loader | CFG-CRT23

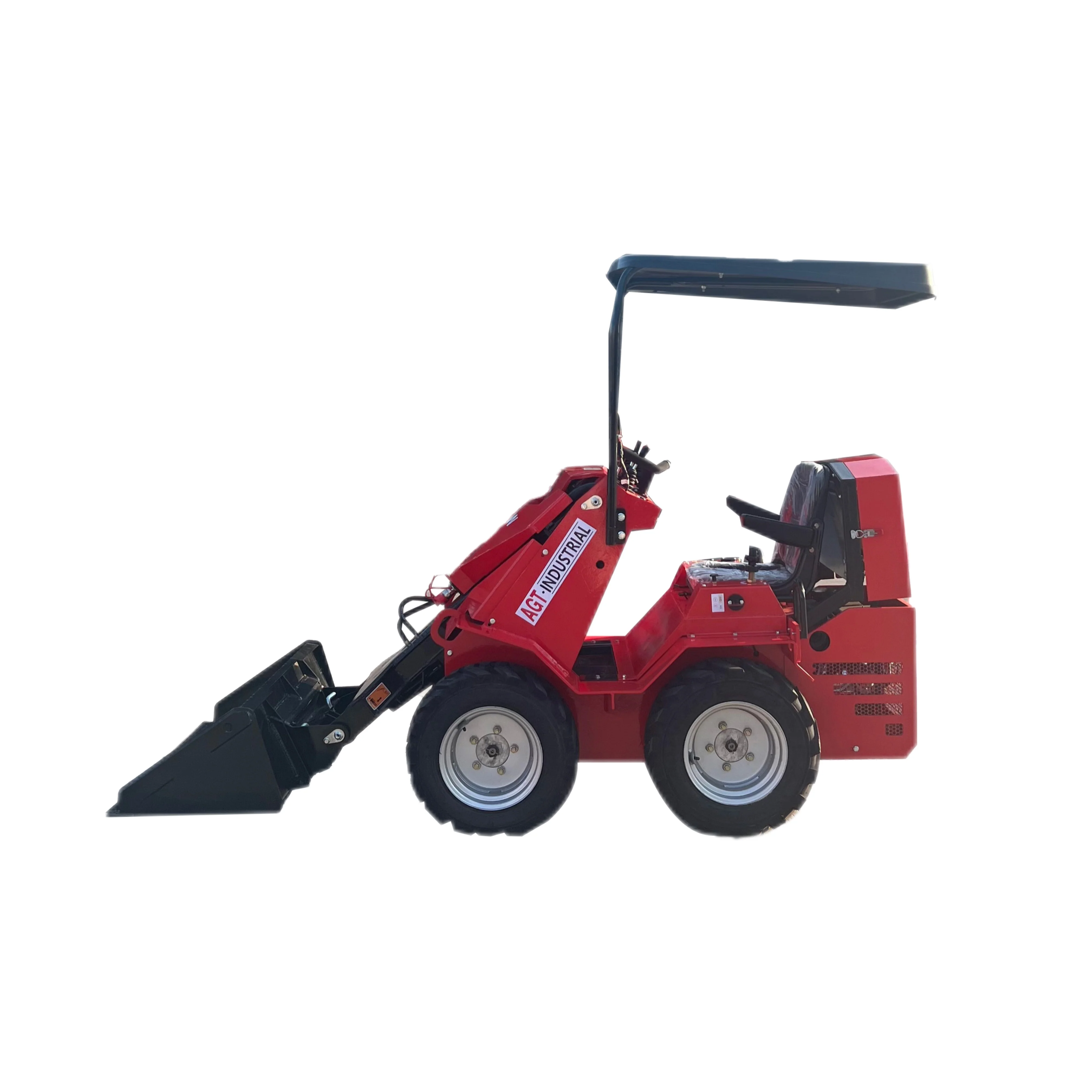

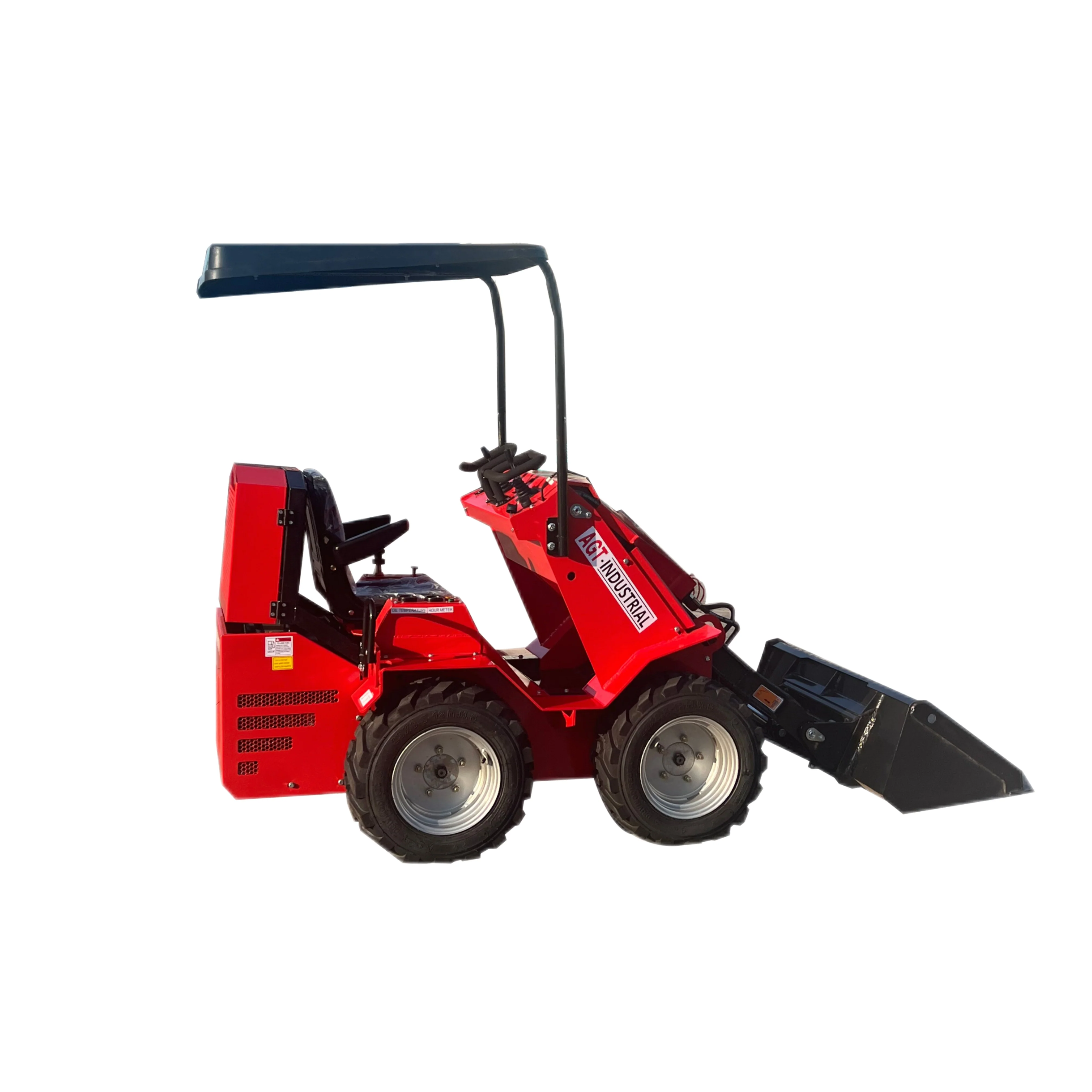

0.8 Ton, Rato Engine Mini Skid Steer | AGT-SDA-140W
